Copper Alloy Ingot
First brass product produced by melting brass products such as a scrap and coagulating in a cast

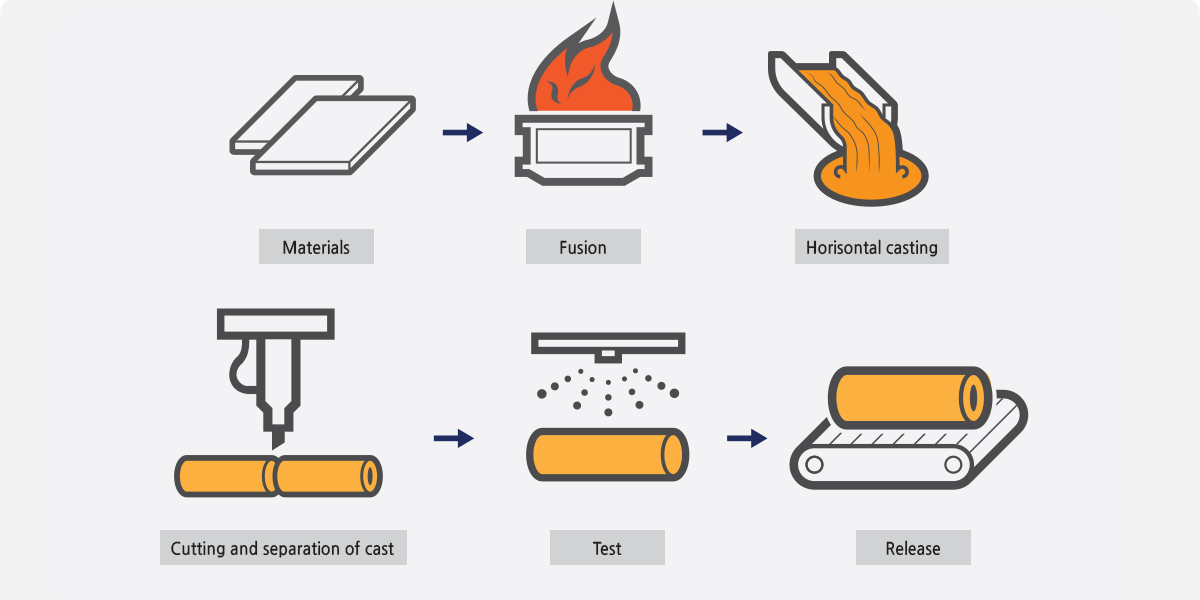

Process of Ingot Production
Available sizes
Ingot type 1 grade A, B, C
| brass alloy ingot type 1 for casting(Copper Alloy Ingot): CACIn201/KSD6024 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % | ||||||||
| Composition | Cu | Pb | Fe | Sn | Ni | Al | Mn | Zn |
| Standard | 83.0~88.0 | 0.5↓ | 0.2↓ | 0.1↓ | 0.2↓ | 0.2↓ | - | REM |
Ingot type 2 grade A, B, C
| brass alloy ingot type 2 for casting(Copper Alloy Ingot): CACIn202/KSD6024 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % | ||||||||
| Composition | Cu | Pb | Fe | Sn | Ni | Al | Mn | Zn |
| Standard | 65.0~70.0 | 0.5~3.0 | 0.6↓ | 1.0↓ | 1.0↓ | 0.5↓ | - | REM |
Ingot type 3 A,B,C
| ingot type 3 grade A, B, C(Copper Alloy Ingot): CACIn203/KSD6024 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % | ||||||||
| Composition | Cu | Pb | Fe | Sn | Ni | Al | Mn | Zn |
| Standard | 58.0~64.0 | 0.5~3.0 | 0.6↓ | 1.0↓ | 1.0↓ | 0.5↓ | - | REM |

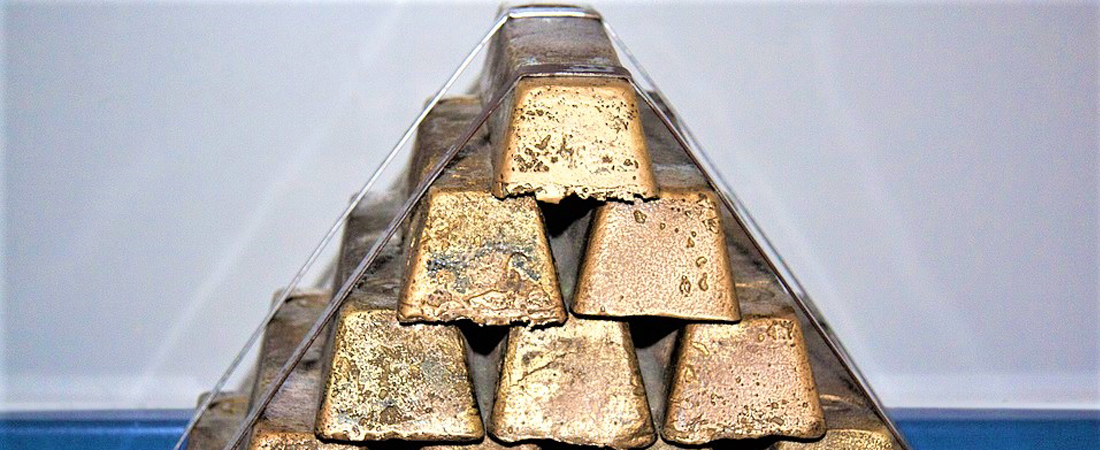

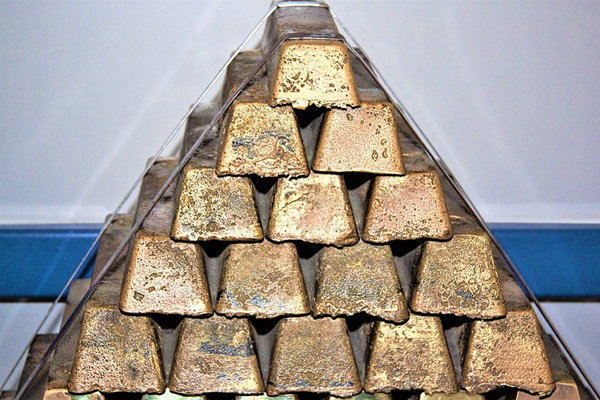

Product image
