Copper Alloy Tube
Draw a billet to make a circular pipe, and redraw it to produce various shapes and sizes of brass pipe
Copper Alloy Tube is well suited for pressure, plating, and drawing.
And it is used as materials for heat exchanger, faucet, and fire extinguishing equipment because it is lead-free.

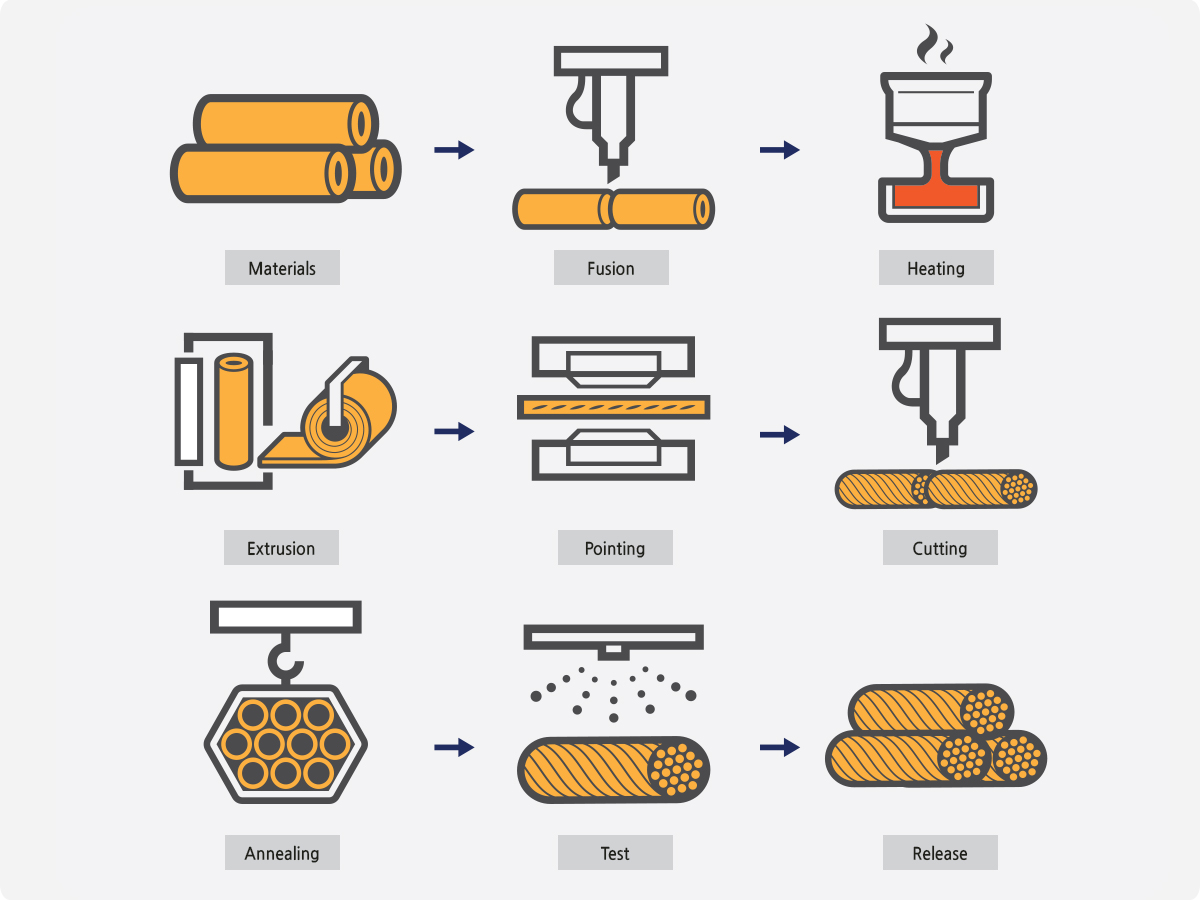

Process of Copper Alloy Tube Production
Available sizes
Check if the dies productin is possible and arrange production
| Seamless Copper Alloy Tube(copper Alloy Tube) C2600/KSD5301 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % | ||||||||
| Composition | Cu | Pb | Fe | Sn | Ni | Al | Mn | Zn |
| Standard | 68.5-71.5 | 0.05↓ | 0.05↓ | - | - | - | - | REM |
| Seamless Copper Alloy Tube(copper Alloy Tube) C2700/KSD5301 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % | ||||||||
| Composition | Cu | Pb | Fe | Sn | Ni | Al | Mn | Zn |
| Standard | 63.0-67.0 | 0.05↓ | 0.05↓ | - | - | - | - | REM |

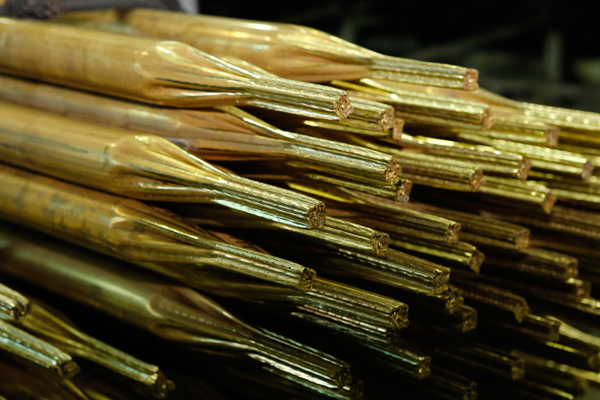

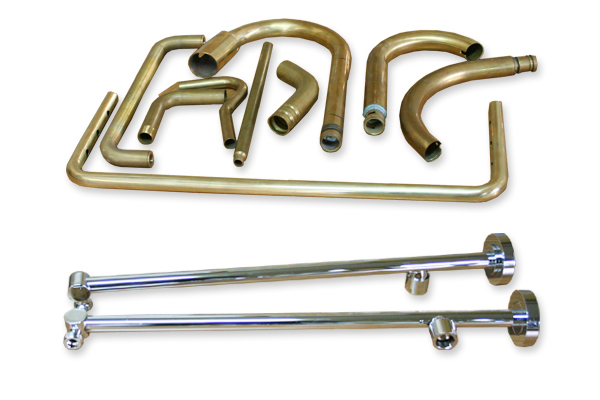

Product image
