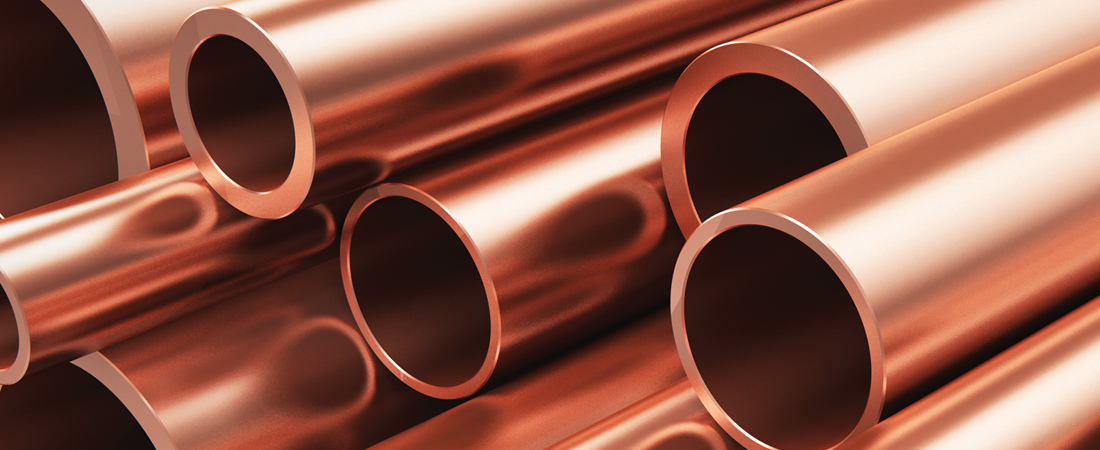

Special Copper Alloy Tube
Copper nickel alloy : an alloy pipe consisting of copper(Cu) and nickel(Ni) which is highly wear/seawater resistant and suitable for high temperature
Use
Used in engine component, condensing engine, or sheath of bullet; 25% Ni alloy is used for coins, 40% Ni alloy(constantan) for thermocouple or electric resistance wire, and 60-70% Ni alloy with a small amount of Fe and Si (monel metal) is used in turbine wing, valve, or mining machines’ components because it is greatly wear-resistant and reduces a little in strength even if it is heated at a high temperature.
Available sizes
| Nickel type 1(Cu-Ni Alloy): C7060/KSD5301 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % Qu＋Ni＋Fe＋Mn 99.5Min | ||||||||
| Composition | Cu | Pb | Fe | Sn | Ni | Al | Nn | Zn |
| Standard | - | 0.5↓ | 0.5-1.8 | - | 9.0-11.0 | - | 0.2-1.0 | 0.5↓ |
| Nickel type 2(Cu-Ni Alloy): C7100/KSD5301 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % Qu＋Ni＋Fe＋Mn 99.5Min | ||||||||
| Composition | Cu | Pb | Fe | Sn | Ni | Al | Nn | Zn |
| Standard | - | 0.5↓ | 0.5-1.0 | - | 19.0-23.0 | - | 0.2-1.0 | 0.5↓ |
| Nickel type 3(Cu-Ni Alloy): C7150/KSD5301 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % Qu＋Ni＋Fe＋Mn 99.5Min | ||||||||
| Composition | Cu | Pb | Fe | Sn | Ni | Al | Nn | Zn |
| Standard | - | 0.5↓ | 0.4-1.0 | - | 29.0-33.0 | - | 0.2-1.0 | 0.5↓ |
| Nickel type 4(Cu-Ni Alloy): C7164/KSD5301 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % Qu＋Ni＋Fe＋Mn 99.5Min | ||||||||
| Composition | Cu | Pb | Fe | Sn | Ni | Al | Nn | Zn |
| Standard | - | 0.5↓ | 1.7-2.3 | - | 29.0-32.0 | - | 1.5-2.5 | 0.5↓ |
Al-Brass
It is a kind of alloy that contains aluminum. It is highly wear/seawater resistant and frequently used in heat exchanger.
Use
Condensers for fire/nuclear generation or ship, feedwater heater, etc.
| Al-Brass type 1(Al-Brass): C4430/KSD5301 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % | ||||||||
| Composition | Cu | Pb | Fe | Sn | As | Al | Nn | Zn |
| Standard | 70.0-73.0 | 0.05↓ | 0.05↓ | 0.9-1.2 | 0.02-0.06 | - | - | REM |
| Al-Brass type 2(Al-Brass): C6871/KSD5301 | ||||||||
|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % | ||||||||
| Composition | Cu | Pb | Fe | Sn | As | Al | Si | Zn |
| Standard | 76.0-79.0 | 0.05↓ | 0.05↓ | - | 0.02-0.06 | 1.8-2.5 | 0.2-0.5 | REM |
| Al-Brass type 3(Al-Brass): C6872/KSD5301 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % | |||||||||
| Composition | Cu | Pb | Fe | Sn | As | Al | Si | Cr | Zn |
| Standard | 76.0-79.0 | 0.05↓ | 0.05↓ | 0.2-1.0 | 0.02-0.06 | 1.8-2.5 | - | 0.10↓ | REM |
| Al-Brass type 4(Al-Brass): C6870/KSD5301 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| CHEMICAL COMPOSITION % | |||||||||
| Composition | Cu | Pb | Fe | Ni | As | Al | Si | Cr | Zn |
| Standard | 76.0-79.0 | 0.05↓ | 0.05↓ | - | 0.02-0.06 | 1.8-2.5 | - | - | REM |
